Align

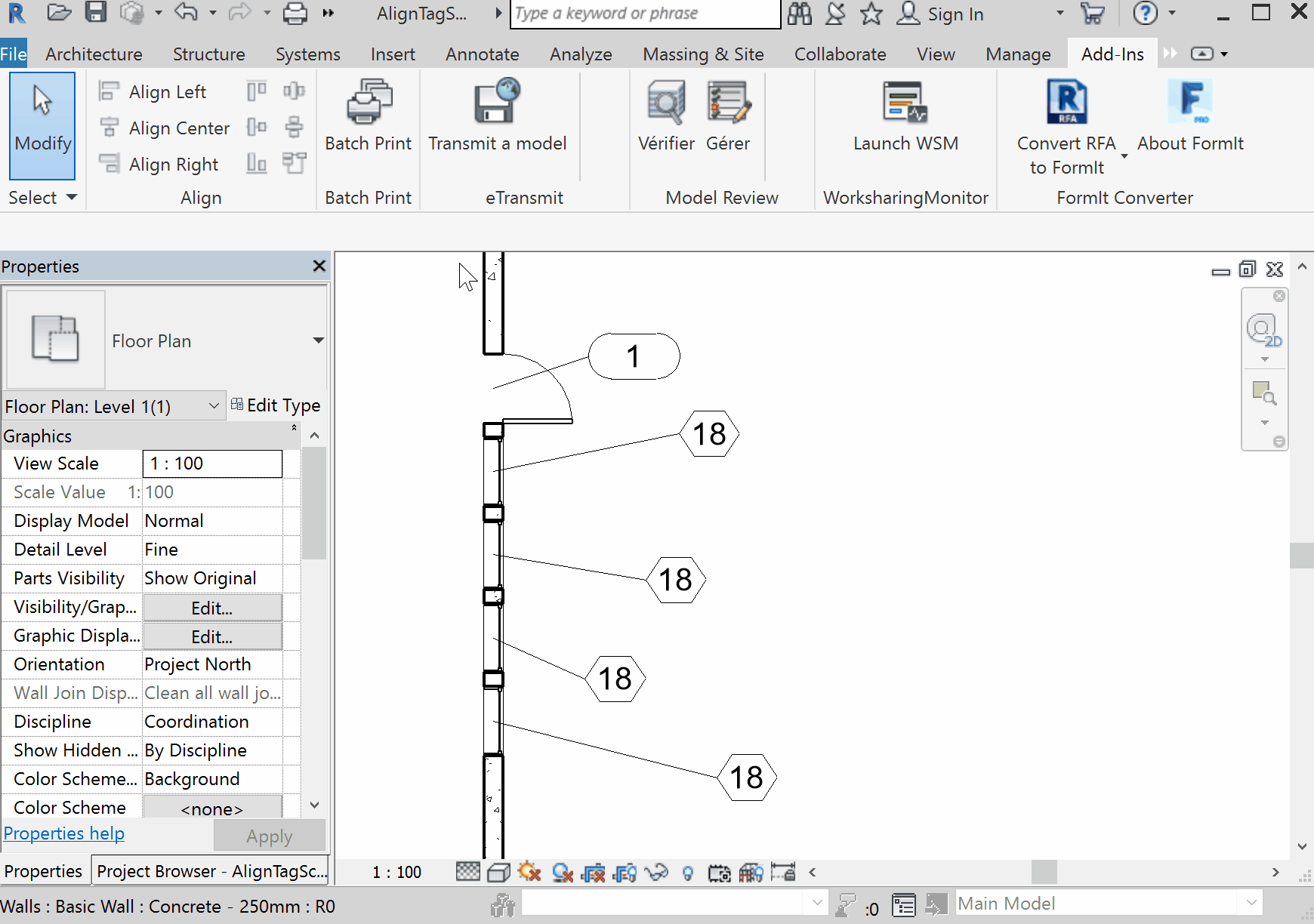

The Align tool allows you to align, distribute or organize selected elements, annotations, tags and text along the axis you specify. Furthermore, the Arrange feature will automatically neatly place your tags around the current view.

The Align plug-in for AutodeskĀ® RevitĀ® can help to save time while producing complex drawings with large sets of annotation.

Just select a few elements and the Align tool will sort them for you.
